You’re building a dashboard. It’s looking pretty good. But every time you talk to your users, someone comes up with another must-have filter or button. Maybe you’re even adding an AI chat feature for the first time and realizing that you’ve got less space than it takes to write “this text box is smaller than I thought” to fit all those buttons and selects.
Good news! Toolbars are here to save you.
Their small size and low-profile aesthetic is perfect for keeping your favorite filters and buttons compact and legible. They’re modular and they work in some of your favorite existing components. Seeing is believing, so let’s jump in!
We’re going to provide some examples of classic spots where you might want a toolbar.
Short on time?
Jump straight to the functionality you’re most interested in:
Getting toolbars
Our Example#
We’re going to build a version of this app piece by piece:
Setup Code#
Let’s get you set up with a basic app with some cards. We’ll use this canvas as a starting point for our toolbar components.
app_1.R
library(shiny)
library(bslib)
ui <- page_fluid(
h2("Example App"),
layout_columns(
card(
card_header(
"Toolbar in header & label"
),
card_body(
p("Placeholder text.")
)
),
card(
card_header(
"Toolbar in header, footer, label"
),
card_body(
p("More placeholder text.")
),
card_footer(
p("Footer content here.")
)
),
col_widths = c(6, 6)
),
card(
card_header(

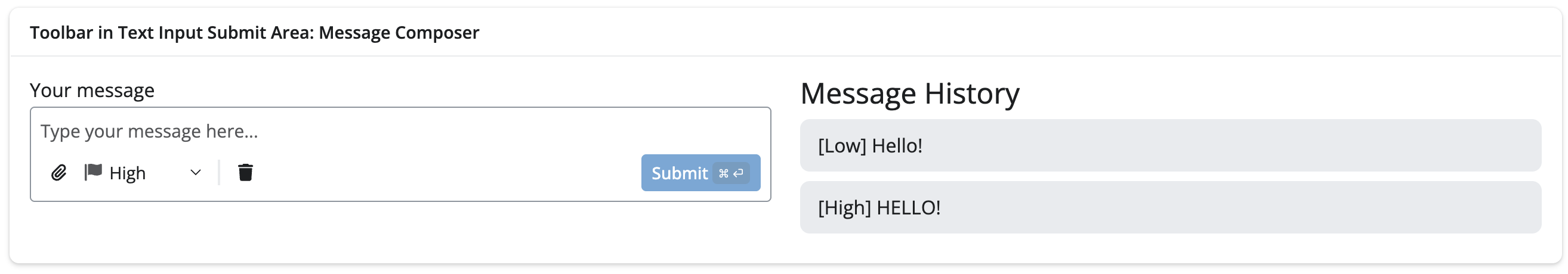

"Toolbar in Text Input Submit Area: Message Composer"
),
card_body(
layout_columns(
p("Placeholder for an input"),
div(
p("Placeholder for outputs")
),
col_widths = c(6, 6)
)
)
)
)
server <- function(input, output, session) {
# Placeholder
}
shinyApp(ui, server)app_1.py
from faicons import icon_svg
from shiny import App, Inputs, Outputs, Session, reactive, render, ui
app_ui = ui.page_fluid(
ui.h2("Example App"),
ui.layout_columns(
ui.card(
ui.card_header(
"Toolbar in header & label",
),
ui.card_body(ui.p("Placeholder text.")),
),
ui.card(
ui.card_header(
"Toolbar in header, footer, label",
),
ui.card_body(ui.p("More placeholder text.")),
ui.card_footer(ui.p("Footer content here.")),
),
col_widths=[6, 6],
),
ui.card(
ui.card_header(
"Toolbar in Text Input Submit Area: Message Composer",
),
ui.card_body(
ui.layout_columns(
ui.p("Placeholder for an input"),
ui.div(ui.p("Placeholder for outputs")),
col_widths=[6, 6],
),
),
),
)
def server(input: Inputs, output: Outputs, session: Session) -> None:
pass
app = App(app_ui, server)A toolbar on its own is pretty simple. All you have to do is:
That’s just an empty container. The real fun is when we start adding our toolbar inputs and connecting them to card contents.

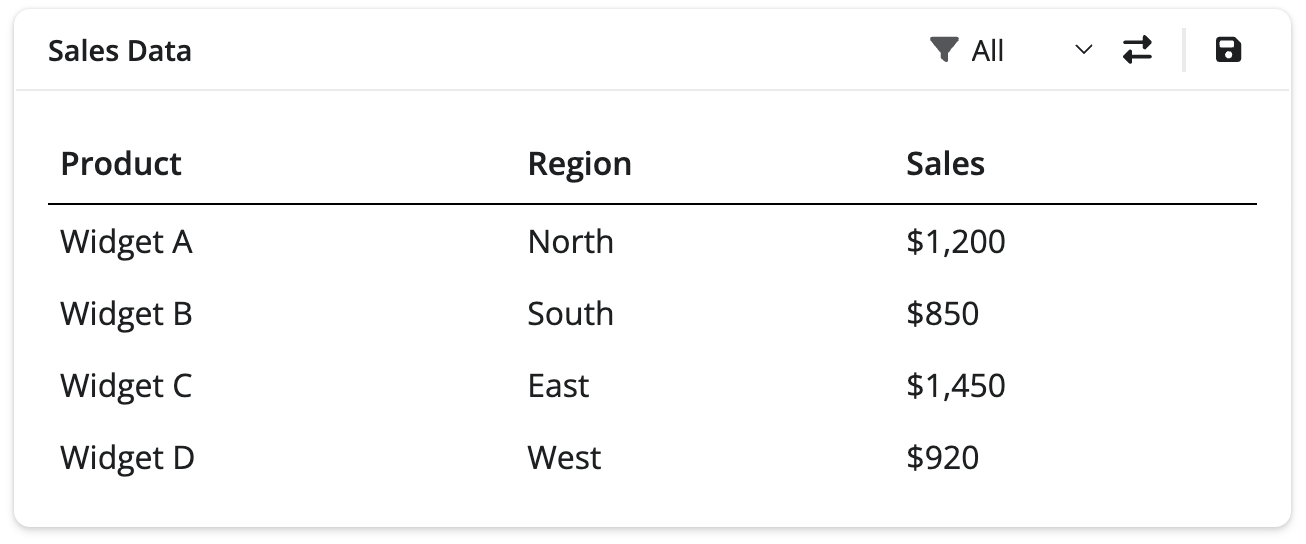

Toolbars in Card Headers & Footers#
Toolbars are great for card headers and footers because they provide a clear way to associate a set of controls with a given subset of the app. For example, you can see below that the header toolbar provides controls that clearly correspond to the contents of the card.
card_header(
"Sales Data",
toolbar(
align = "right",
toolbar_input_select(
id = "region_filter",
label = "Region",
choices = c("All", "North", "South", "East", "West"),
icon = icon("filter")
),
toolbar_divider(),
toolbar_input_button(
id = "save_btn",
label = "Save",
icon = icon("floppy-disk")
)
)
)Complete app code
app_2.R
library(shiny)
library(bslib)
ui <- page_fluid(
h2("Example App"),
layout_columns(
card(
card_header(
"Sales Data",
toolbar(
align = "right",
toolbar_input_select(
id = "region_filter",
label = "Region",
choices = c("All", "North", "South", "East", "West"),
icon = icon("filter")
),
toolbar_divider(),
toolbar_input_button(
id = "save_btn",
label = "Save",
icon = icon("floppy-disk")
)
)
),
card_body(
tableOutput("sales_table")
)
),
card(
card_header(
"Toolbar in header, footer, label"
),
card_body(
p("More placeholder text.")
),
card_footer(
p("Footer content here.")
)
),
col_widths = c(6, 6)
),
card(
card_header(
"Toolbar in Text Input Submit Area: Message Composer"
),
card_body(
layout_columns(
p("Placeholder for an input"),
div(
p("Placeholder for outputs")
),
col_widths = c(6, 6)
)
)
)
)
server <- function(input, output, session) {
# Handle save button click
observeEvent(input$save_btn, {
# Change icon to checkmark and show notification
update_toolbar_input_button(
"save_btn",
icon = icon("check"),
label = "Saved",
session = session
)
showNotification("Saving", type = "message")
})
# Sample sales data
sales_data <- reactive({
data.frame(
Product = c("Widget A", "Widget B", "Widget C", "Widget D"),
Region = c("North", "South", "East", "West"),
Sales = c(1200, 850, 1450, 920),
stringsAsFactors = FALSE
)
})
# Filtered sales data based on region filter
filtered_data <- reactive({
data <- sales_data()
if (input$region_filter != "All") {
data <- data[data$Region == input$region_filter, ]
}
data
})
# Render the table
output$sales_table <- renderTable({
data <- filtered_data()
data$Sales <- paste0("$", format(data$Sales, big.mark = ",", trim = TRUE))
data
})
}
shinyApp(ui, server)ui.card_header(
"Sales Data",
ui.toolbar(
ui.toolbar_input_select(
id="region_filter",
label="Region",
choices=["All", "North", "South", "East", "West"],
icon=icon_svg("filter"),
),
ui.toolbar_divider(),
ui.toolbar_input_button(
id="save_btn",
label="Save",
icon=icon_svg("floppy-disk"),
),
align="right",
),
),Complete app code
app_2.py
import pandas as pd
from faicons import icon_svg
from shiny import App, Inputs, Outputs, Session, reactive, render, ui
app_ui = ui.page_fluid(
ui.h2("Example App"),
ui.layout_columns(
ui.card(
ui.card_header(
"Sales Data",
ui.toolbar(
ui.toolbar_input_select(
id="region_filter",
label="Region",
choices=["All", "North", "South", "East", "West"],
icon=icon_svg("filter"),
),
ui.toolbar_divider(),
ui.toolbar_input_button(
id="save_btn",
label="Save",
icon=icon_svg("floppy-disk"),
),
align="right",
),
),
ui.card_body(ui.output_table("sales_table")),
),
ui.card(
ui.card_header(
"Toolbar in header, footer, label",
),
ui.card_body(ui.p("More placeholder text.")),
ui.card_footer(ui.p("Footer content here.")),
),
col_widths=[6, 6],
),
ui.card(
ui.card_header(
"Toolbar in Text Input Submit Area: Message Composer",
),
ui.card_body(
ui.layout_columns(
ui.p("Placeholder for an input"),
ui.div(ui.p("Placeholder for outputs")),
col_widths=[6, 6],
),
),
),
)
def server(input: Inputs, output: Outputs, session: Session) -> None:
@reactive.effect
@reactive.event(input.save_btn)
def update():
ui.update_toolbar_input_button(
"save_btn",
icon=icon_svg("check"),
label="Saved",
)
ui.notification_show("Saving", type="message")
# Sample sales data
@reactive.calc
def sales_data():
return pd.DataFrame(
{
"Product": ["Widget A", "Widget B", "Widget C", "Widget D"],
"Region": ["North", "South", "East", "West"],
"Sales": [1200, 850, 1450, 920],
}
)
# Filtered sales data based on region filter
@reactive.calc
def filtered_data():
data = sales_data()
if input.region_filter() != "All":
data = data[data["Region"] == input.region_filter()]
return data
# Render the table
@render.table
def sales_table():
return (
filtered_data()
.style.hide(axis="index")
.format({"Sales": "${:,.0f}"})
.set_table_styles([
{"selector": "th", "props": [
("border-bottom", "1px solid black"),
("padding", "8px 6px"),
("text-align", "left"),
]},
{"selector": "td", "props": [
("padding", "6px"),
]},
])
)
app = App(app_ui, server)Toolbars in Card Footers#
We can also add toolbars in card footers. Footers are a great spot for secondary actions like sharing, exporting, or navigating to related content.
card_footer(
toolbar(
align = "right",
toolbar_input_button(
id = "share_btn",
label = "Share",
icon = icon("share-nodes"),
show_label = TRUE
),
toolbar_input_button(
id = "export_btn",
label = "Export",
icon = icon("download")
)
)
)Complete app code
app_3.R
library(shiny)
library(bslib)
ui <- page_fluid(
h2("Example App"),
layout_columns(
card(
card_header(
"Sales Data",
toolbar(
align = "right",
toolbar_input_select(
id = "region_filter",
label = "Region",
choices = c("All", "North", "South", "East", "West"),
icon = icon("filter")
),
toolbar_divider(),
toolbar_input_button(
id = "save_btn",
label = "Save",
icon = icon("floppy-disk")
)
)
),
card_body(
tableOutput("sales_table")
)
),
card(
card_header(
"Toolbar in header, footer, label"
),
card_body(
p("More placeholder text.")
),
card_footer(
toolbar(
align = "right",
toolbar_input_button(
id = "share_btn",
label = "Share",
icon = icon("share-nodes"),
show_label = TRUE
),
toolbar_input_button(
id = "export_btn",
label = "Export",
icon = icon("download")
)
)
)
),
col_widths = c(6, 6)
),
card(
card_header(
"Toolbar in Text Input Submit Area: Message Composer"
),
card_body(
layout_columns(
p("Placeholder for an input"),
div(
p("Placeholder for outputs")
),
col_widths = c(6, 6)
)
)
)
)
server <- function(input, output, session) {
# Sample sales data
sales_data <- reactive({
data.frame(
Product = c("Widget A", "Widget B", "Widget C", "Widget D"),
Region = c("North", "South", "East", "West"),
Sales = c(1200, 850, 1450, 920),
stringsAsFactors = FALSE
)
})
# Filtered sales data based on region filter
filtered_data <- reactive({
data <- sales_data()
if (input$region_filter != "All") {
data <- data[data$Region == input$region_filter, ]
}
data
})
# Render the table
output$sales_table <- renderTable({
data <- filtered_data()
data$Sales <- paste0("$", format(data$Sales, big.mark = ",", trim = TRUE))
data
})
}
shinyApp(ui, server)ui.card_footer(
ui.toolbar(
ui.toolbar_input_button(
id="share_btn",
label="Share",
icon=icon_svg("share-nodes"),
show_label=True,
),
ui.toolbar_input_button(
id="export_btn",
label="Export",
icon=icon_svg("download")
),
align="right",
),
),Complete app code
app_3.py
import pandas as pd
from faicons import icon_svg
from shiny import App, Inputs, Outputs, Session, reactive, render, ui
app_ui = ui.page_fluid(
ui.h2("Example App"),
ui.layout_columns(
ui.card(
ui.card_header(
"Sales Data",
ui.toolbar(
ui.toolbar_input_select(
id="region_filter",
label="Region",
choices=["All", "North", "South", "East", "West"],
icon=icon_svg("filter"),
),
ui.toolbar_divider(),
ui.toolbar_input_button(
id="save_btn",
label="Save",
icon=icon_svg("floppy-disk"),
),
align="right",
),
),
ui.card_body(ui.output_table("sales_table")),
),
ui.card(
ui.card_header(
"Toolbar in header, footer, label",
),
ui.card_body(ui.p("More placeholder text.")),
ui.card_footer(
ui.toolbar(
ui.toolbar_input_button(
id="share_btn",
label="Share",
icon=icon_svg("share-nodes"),
show_label=True,
),
ui.toolbar_input_button(
id="export_btn",
label="Export",
icon=icon_svg("download")
),
align="right",
),
),
),
col_widths=[6, 6],
),
ui.card(
ui.card_header(
"Toolbar in Text Input Submit Area: Message Composer",
),
ui.card_body(
ui.layout_columns(
ui.p("Placeholder for an input"),
ui.div(ui.p("Placeholder for outputs")),
col_widths=[6, 6],
),
),
),
)
def server(input: Inputs, output: Outputs, session: Session) -> None:
# Sample sales data
@reactive.calc
def sales_data():
return pd.DataFrame(
{
"Product": ["Widget A", "Widget B", "Widget C", "Widget D"],
"Region": ["North", "South", "East", "West"],
"Sales": [1200, 850, 1450, 920],
}
)
# Filtered sales data based on region filter
@reactive.calc
def filtered_data():
data = sales_data()
if input.region_filter() != "All":
data = data[data["Region"] == input.region_filter()]
return data
# Render the table
@render.table
def sales_table():
return (
filtered_data()
.style.hide(axis="index")
.format({"Sales": "${:,.0f}"})
.set_table_styles([
{"selector": "th", "props": [
("border-bottom", "1px solid black"),
("padding", "8px 6px"),
("text-align", "left"),
]},
{"selector": "td", "props": [
("padding", "6px"),
]},
])
)
app = App(app_ui, server)Notice in these examples we use both toolbar buttons and toolbar select inputs. Both of these inputs also have update functions.
For example you might want to update an icon on submit or change out the list of choices depending on user input. We’ll talk more about that in the next section.
Updating Toolbar Inputs#
Toolbar input buttons and selects can be updated dynamically, just like regular Shiny inputs. This is useful for doing things like changing icons after an action (ex. to show a checkmark after saving) or updating available choices based on app state.
A simple example of updating a button#
observeEvent(input$save_btn, {
# Change icon to checkmark and update label
update_toolbar_input_button(
"save_btn",
icon = icon("check"),
label = "Saved",
session = session
)
showNotification("Changes saved!", type = "message")
})See the complete app code below for more complex examples, including update_toolbar_input_select()
Complete app code
app_4.R
library(shiny)
library(bslib)
ui <- page_fluid(
h2("Example App"),
layout_columns(
card(
card_header(
"Sales Data",
toolbar(
align = "right",
toolbar_input_select(
id = "data_filter",
label = "Region",
choices = c("All", "North", "South", "East", "West"),
icon = icon("filter"),
tooltip = "Region"
),
toolbar_input_button(
id = "toggle_filter",
label = "Switch to Product",
icon = icon("right-left"),
tooltip = "Switch to filtering by Product"
),
toolbar_divider(),
toolbar_input_button(
id = "save_btn",
label = "Save",
icon = icon("floppy-disk")
)
)
),
card_body(
tableOutput("sales_table")
)
),
card(
card_header(
"Toolbar in header, footer, label"
),
card_body(
p("More placeholder text.")
),
card_footer(
toolbar(
align = "right",
toolbar_input_button(
id = "share_btn",
label = "Share",
icon = icon("share-nodes"),
show_label = TRUE
),
toolbar_input_button(
id = "export_btn",
label = "Export",
icon = icon("download")
)
)
)
),
col_widths = c(6, 6)
),
card(
card_header(
"Toolbar in Text Input Submit Area: Message Composer"
),
card_body(
layout_columns(
p("Placeholder for an input"),
div(
p("Placeholder for outputs")
),
col_widths = c(6, 6)
)
)
)
)
server <- function(input, output, session) {
# Track current filter mode
filter_mode <- reactiveVal("Region")
# Handle save button click
observeEvent(input$save_btn, {
update_toolbar_input_button(
"save_btn",
icon = icon("check"),
label = "Saved"
)
showNotification("Saving", type = "message")
})
# Handle toggle filter button click
observeEvent(input$toggle_filter, {
if (filter_mode() == "Region") {
filter_mode("Product")
update_toolbar_input_select(
"data_filter",
label = "Product",
choices = c("All", "Widget A", "Widget B", "Widget C", "Widget D"),
selected = "All"
)
update_toolbar_input_button(
"toggle_filter",
label = "Switch to Region"
)
update_tooltip("toggle_filter_tooltip", "Switch to filtering by Region")
update_tooltip("data_filter_tooltip", "Product")
} else {
filter_mode("Region")
update_toolbar_input_select(
"data_filter",
label = "Region",
choices = c("All", "North", "South", "East", "West"),
selected = "All"
)
update_toolbar_input_button(
"toggle_filter",
label = "Switch to Product"
)
update_tooltip("toggle_filter_tooltip", "Switch to filtering by Product")
update_tooltip("data_filter_tooltip", "Region")
}
})
# Sample sales data
sales_data <- reactive({
data.frame(
Product = c("Widget A", "Widget B", "Widget C", "Widget D"),
Region = c("North", "South", "East", "West"),
Sales = c(1200, 850, 1450, 920),
stringsAsFactors = FALSE
)
})
# Filtered sales data based on current filter
filtered_data <- reactive({
data <- sales_data()
if (input$data_filter != "All") {
if (filter_mode() == "Region") {
data <- data[data$Region == input$data_filter, ]
} else {
data <- data[data$Product == input$data_filter, ]
}
}
data
})
# Render the table
output$sales_table <- renderTable({
data <- filtered_data()
if (nrow(data) > 0) {
data$Sales <- paste0("$", format(data$Sales, big.mark = ",", trim = TRUE))
}
data
})
}
shinyApp(ui, server)A simple example of updating a button#
@reactive.effect
@reactive.event(input.save_btn)
def update():
ui.update_toolbar_input_button(
"save_btn",
icon=icon_svg("check"),
label="Saved",
)
ui.notification_show("Changes saved!", type="message")See the complete app code below for more complex examples, including ui.update_toolbar_input_select()
Complete app code
app_4.py
import pandas as pd
from faicons import icon_svg
from shiny import App, Inputs, Outputs, Session, reactive, render, ui
app_ui = ui.page_fluid(
ui.h2("Example App"),
ui.layout_columns(
ui.card(
ui.card_header(
"Sales Data",
ui.toolbar(
ui.toolbar_input_select(
id="data_filter",
label="Region",
choices=["All", "North", "South", "East", "West"],
icon=icon_svg("filter"),
tooltip="Region",
),
ui.toolbar_input_button(
id="toggle_filter",
label="Switch to Product",
icon=icon_svg("right-left"),
tooltip="Switch to filtering by Product",
),
ui.toolbar_divider(),
ui.toolbar_input_button(
id="save_btn",
label="Save",
icon=icon_svg("floppy-disk"),
),
align="right",
),
),
ui.card_body(ui.output_table("sales_table")),
),
ui.card(
ui.card_header(
"Toolbar in header, footer, label",
),
ui.card_body(ui.p("More placeholder text.")),
ui.card_footer(
ui.toolbar(
ui.toolbar_input_button(
id="share_btn",
label="Share",
icon=icon_svg("share-nodes"),
show_label=True,
),
ui.toolbar_input_button(
id="export_btn",
label="Export",
icon=icon_svg("download")
),
align="right",
),
),
),
col_widths=[6, 6],
),
ui.card(
ui.card_header(
"Toolbar in Text Input Submit Area: Message Composer",
),
ui.card_body(
ui.layout_columns(
ui.p("Placeholder for an input"),
ui.div(ui.p("Placeholder for outputs")),
col_widths=[6, 6],
),
),
),
)
def server(input: Inputs, output: Outputs, session: Session) -> None:
# Track current filter mode
filter_mode = reactive.value("Region")
@reactive.effect
@reactive.event(input.save_btn)
def _():
ui.update_toolbar_input_button(
"save_btn",
icon=icon_svg("check"),
label="Saved",
)
ui.notification_show("Saving", type="message")
# Handle toggle filter button click
@reactive.effect
@reactive.event(input.toggle_filter)
def _():
if filter_mode() == "Region":
filter_mode.set("Product")
ui.update_toolbar_input_select(
"data_filter",
label="Product",
choices=["All", "Widget A", "Widget B", "Widget C", "Widget D"],
selected="All"
)
ui.update_toolbar_input_button(
"toggle_filter",
label="Switch to Region",
)
ui.update_tooltip("toggle_filter_tooltip", "Switch to filtering by Region")
ui.update_tooltip("data_filter_tooltip", "Product")
else:
filter_mode.set("Region")
ui.update_toolbar_input_select(
"data_filter",
label="Region",
choices=["All", "North", "South", "East", "West"],
selected="All"
)
ui.update_toolbar_input_button(
"toggle_filter",
label="Switch to Product",
)
ui.update_tooltip("toggle_filter_tooltip", "Switch to filtering by Product")
ui.update_tooltip("data_filter_tooltip", "Region")
# Sample sales data
@reactive.calc
def sales_data():
return pd.DataFrame(
{
"Product": ["Widget A", "Widget B", "Widget C", "Widget D"],
"Region": ["North", "South", "East", "West"],
"Sales": [1200, 850, 1450, 920],
}
)
# Filtered sales data based on current filter
@reactive.calc
def filtered_data():
data = sales_data()
if input.data_filter() != "All":
if filter_mode() == "Region":
data = data[data["Region"] == input.data_filter()]
else:
data = data[data["Product"] == input.data_filter()]
return data
# Render the table
@render.table
def sales_table():
return (
filtered_data()
.style.hide(axis="index")
.format({"Sales": "${:,.0f}"})
.set_table_styles([
{"selector": "th", "props": [
("border-bottom", "1px solid black"),
("padding", "8px 6px"),
("text-align", "left"),
]},
{"selector": "td", "props": [
("padding", "6px"),
]},
])
)
app = App(app_ui, server)Attaching Controls to Inputs#
Toolbars aren’t just for headers and footers. We can also put them in input labels to attach small controls directly to inputs. This pattern works well for adding quick actions like preset values or reset buttons next to numeric inputs.

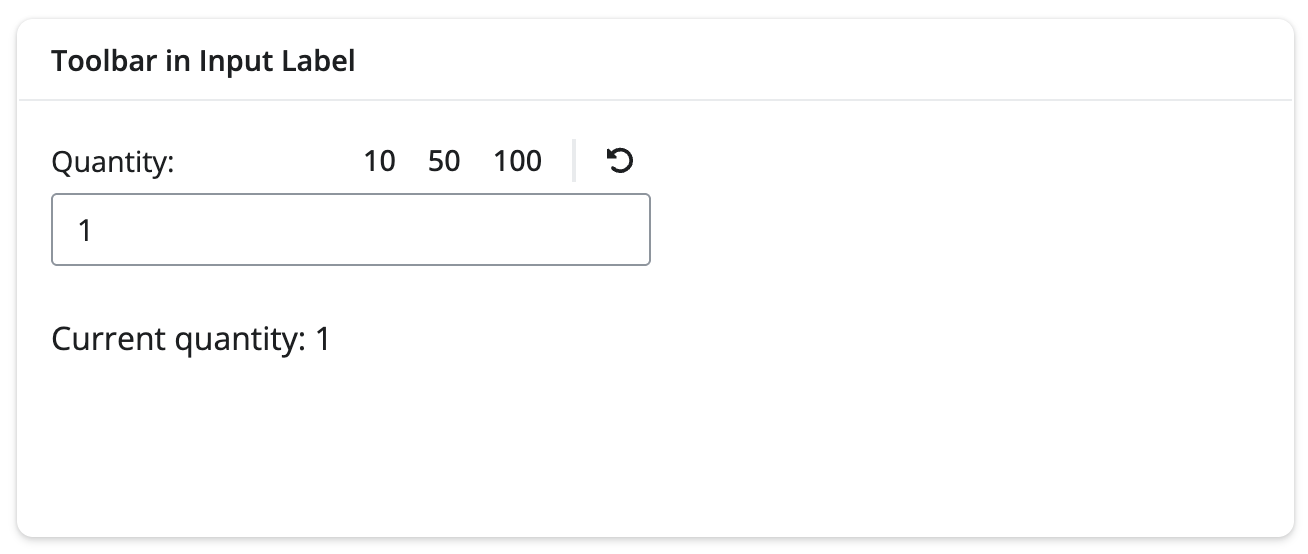

Here’s an example of a quantity input with toolbar buttons for setting preset values and resetting:
numericInput(
"quantity",
label = toolbar(
"Quantity:",
toolbar_spacer(),
toolbar_input_button(
id = "btn_preset_10",
label = "10",
show_label = TRUE,
tooltip = "Set to 10"
),
toolbar_input_button(
id = "btn_preset_50",
label = "50",
show_label = TRUE,
tooltip = "Set to 50"
),
toolbar_input_button(
id = "btn_preset_100",
label = "100",
show_label = TRUE,
tooltip = "Set to 100"
),
toolbar_divider(),
toolbar_input_button(
id = "btn_reset",
label = "Reset",
icon = icon("rotate-left"),
tooltip = "Reset to 1"
),
align = "right"
),
value = 1,
min = 1,
max = 1000
)Complete app code
app_5.R
library(shiny)
library(bslib)
ui <- page_fluid(
h2("Example App"),
layout_columns(
card(
card_header(
"Sales Data",
toolbar(
align = "right",
toolbar_input_select(
id = "data_filter",
label = "Region",
choices = c("All", "North", "South", "East", "West"),
icon = icon("filter"),
tooltip = "Region"
),
toolbar_input_button(
id = "toggle_filter",
label = "Switch to Product",
icon = icon("right-left"),
tooltip = "Switch to filtering by Product"
),
toolbar_divider(),
toolbar_input_button(
id = "save_btn",
label = "Save",
icon = icon("floppy-disk")
)
)
),
card_body(
tableOutput("sales_table")
)
),
card(
card_header("Toolbar in Input Label"),
card_body(
numericInput(
"quantity",
label = toolbar(
"Quantity:",
toolbar_spacer(),
toolbar_input_button(
id = "btn_preset_10",
label = "10",
show_label = TRUE,
tooltip = "Set to 10"
),
toolbar_input_button(
id = "btn_preset_50",
label = "50",
show_label = TRUE,
tooltip = "Set to 50"
),
toolbar_input_button(
id = "btn_preset_100",
label = "100",
show_label = TRUE,
tooltip = "Set to 100"
),
toolbar_divider(),
toolbar_input_button(
id = "btn_reset",
label = "Reset",
icon = icon("rotate-left"),
tooltip = "Reset to 1"
),
align = "right"
),
value = 1,
min = 1,
max = 1000
),
textOutput("quantity_output")
)
),
col_widths = c(6, 6)
),
card(
card_header("Toolbar in Text Input Submit Area: Message Composer"),
card_body(
layout_columns(
p("Placeholder for an input"),
div(
p("Placeholder for outputs")
),
col_widths = c(6, 6)
)
)
)
)
server <- function(input, output, session) {
# Track current filter mode
filter_mode <- reactiveVal("Region")
# Handle save button click
observeEvent(input$save_btn, {
update_toolbar_input_button(
"save_btn",
icon = icon("check"),
label = "Saved"
)
showNotification("Saving", type = "message")
})
# Handle toggle filter button click
observeEvent(input$toggle_filter, {
if (filter_mode() == "Region") {
filter_mode("Product")
update_toolbar_input_select(
"data_filter",
label = "Product",
choices = c("All", "Widget A", "Widget B", "Widget C", "Widget D"),
selected = "All"
)
update_toolbar_input_button(
"toggle_filter",
label = "Switch to Region"
)
update_tooltip("toggle_filter_tooltip", "Switch to filtering by Region")
update_tooltip("data_filter_tooltip", "Product")
} else {
filter_mode("Region")
update_toolbar_input_select(
"data_filter",
label = "Region",
choices = c("All", "North", "South", "East", "West"),
selected = "All"
)
update_toolbar_input_button(
"toggle_filter",
label = "Switch to Product"
)
update_tooltip("toggle_filter_tooltip", "Switch to filtering by Product")
update_tooltip("data_filter_tooltip", "Region")
}
})
# Handle numeric input preset buttons
observeEvent(input$btn_preset_10, {
updateNumericInput(session, "quantity", value = 10)
})
observeEvent(input$btn_preset_50, {
updateNumericInput(session, "quantity", value = 50)
})
observeEvent(input$btn_preset_100, {
updateNumericInput(session, "quantity", value = 100)
})
observeEvent(input$btn_reset, {
updateNumericInput(session, "quantity", value = 1)
})
output$quantity_output <- renderText({
paste("Current quantity:", input$quantity)
})
# Sample sales data
sales_data <- reactive({
data.frame(
Product = c("Widget A", "Widget B", "Widget C", "Widget D"),
Region = c("North", "South", "East", "West"),
Sales = c(1200, 850, 1450, 920),
stringsAsFactors = FALSE
)
})
# Filtered sales data based on current filter
filtered_data <- reactive({
data <- sales_data()
if (input$data_filter != "All") {
if (filter_mode() == "Region") {
data <- data[data$Region == input$data_filter, ]
} else {
data <- data[data$Product == input$data_filter, ]
}
}
data
})
# Render the table
output$sales_table <- renderTable({
data <- filtered_data()
if (nrow(data) > 0) {
data$Sales <- paste0("$", format(data$Sales, big.mark = ",", trim = TRUE))
}
data
})
}
shinyApp(ui, server)ui.input_numeric(
"quantity",
label=ui.toolbar(
"Quantity:",
ui.toolbar_spacer(),
ui.toolbar_input_button(
"btn_preset_10",
label="10",
show_label=True,
tooltip="Set to 10",
),
ui.toolbar_input_button(
"btn_preset_50",
label="50",
show_label=True,
tooltip="Set to 50",
),
ui.toolbar_input_button(
"btn_preset_100",
label="100",
show_label=True,
tooltip="Set to 100",
),
ui.toolbar_divider(),
ui.toolbar_input_button(
"btn_reset",
label="Reset",
icon=icon_svg("rotate-left"),
tooltip="Reset to 1",
),
align="right",
),
value=1,
min=1,
max=1000,
)Complete app code
app_5.py
import pandas as pd
from faicons import icon_svg
from shiny import App, Inputs, Outputs, Session, reactive, render, ui
app_ui = ui.page_fluid(
ui.h2("Example App"),
ui.layout_columns(
ui.card(
ui.card_header(
"Sales Data",
ui.toolbar(
ui.toolbar_input_select(
id="data_filter",
label="Region",
choices=["All", "North", "South", "East", "West"],
icon=icon_svg("filter"),
tooltip="Region",
),
ui.toolbar_input_button(
id="toggle_filter",
label="Switch to Product",
icon=icon_svg("right-left"),
tooltip="Switch to filtering by Product",
),
ui.toolbar_divider(),
ui.toolbar_input_button(
id="save_btn",
label="Save",
icon=icon_svg("floppy-disk"),
),
align="right",
),
),
ui.card_body(ui.output_table("sales_table")),
),
ui.card(
ui.card_header("Toolbar in Input Label"),
ui.card_body(
ui.input_numeric(
"quantity",
label=ui.toolbar(
"Quantity:",
ui.toolbar_spacer(),
ui.toolbar_input_button(
"btn_preset_10",
label="10",
show_label=True,
tooltip="Set to 10",
),
ui.toolbar_input_button(
"btn_preset_50",
label="50",
show_label=True,
tooltip="Set to 50",
),
ui.toolbar_input_button(
"btn_preset_100",
label="100",
show_label=True,
tooltip="Set to 100",
),
ui.toolbar_divider(),
ui.toolbar_input_button(
"btn_reset",
label="Reset",
icon=icon_svg("rotate-left"),
tooltip="Reset to 1",
),
align="right",
),
value=1,
min=1,
max=1000,
),
ui.output_text("quantity_output"),
),
),
col_widths=[6, 6],
),
ui.card(
ui.card_header("Toolbar in Text Input Submit Area: Message Composer"),
ui.card_body(
ui.layout_columns(
ui.p("Placeholder for an input"),
ui.div(ui.p("Placeholder for outputs")),
col_widths=[6, 6],
),
),
),
)
def server(input: Inputs, output: Outputs, session: Session) -> None:
# Track current filter mode
filter_mode = reactive.value("Region")
@reactive.effect
@reactive.event(input.save_btn)
def _():
ui.update_toolbar_input_button(
"save_btn",
icon=icon_svg("check"),
label="Saved",
)
ui.notification_show("Saving", type="message")
# Handle toggle filter button click
@reactive.effect
@reactive.event(input.toggle_filter)
def _():
if filter_mode() == "Region":
filter_mode.set("Product")
ui.update_toolbar_input_select(
"data_filter",
label="Product",
choices=["All", "Widget A", "Widget B", "Widget C", "Widget D"],
selected="All"
)
ui.update_toolbar_input_button(
"toggle_filter",
label="Switch to Region",
)
ui.update_tooltip("toggle_filter_tooltip", "Switch to filtering by Region")
ui.update_tooltip("data_filter_tooltip", "Product")
else:
filter_mode.set("Region")
ui.update_toolbar_input_select(
"data_filter",
label="Region",
choices=["All", "North", "South", "East", "West"],
selected="All"
)
ui.update_toolbar_input_button(
"toggle_filter",
label="Switch to Product",
)
ui.update_tooltip("toggle_filter_tooltip", "Switch to filtering by Product")
ui.update_tooltip("data_filter_tooltip", "Region")
# Handle numeric input preset buttons
@reactive.effect
@reactive.event(input.btn_preset_10)
def _():
ui.update_numeric("quantity", value=10)
@reactive.effect
@reactive.event(input.btn_preset_50)
def _():
ui.update_numeric("quantity", value=50)
@reactive.effect
@reactive.event(input.btn_preset_100)
def _():
ui.update_numeric("quantity", value=100)
@reactive.effect
@reactive.event(input.btn_reset)
def _():
ui.update_numeric("quantity", value=1)
@render.text
def quantity_output():
return f"Current quantity: {input.quantity()}"
# Sample sales data
@reactive.calc
def sales_data():
return pd.DataFrame(
{
"Product": ["Widget A", "Widget B", "Widget C", "Widget D"],
"Region": ["North", "South", "East", "West"],
"Sales": [1200, 850, 1450, 920],
}
)
# Filtered sales data based on current filter
@reactive.calc
def filtered_data():
data = sales_data()
if input.data_filter() != "All":
if filter_mode() == "Region":
data = data[data["Region"] == input.data_filter()]
else:
data = data[data["Product"] == input.data_filter()]
return data
# Render the table
@render.table
def sales_table():
return (
filtered_data()
.style.hide(axis="index")
.format({"Sales": "${:,.0f}"})
.set_table_styles([
{"selector": "th", "props": [
("border-bottom", "1px solid black"),
("padding", "8px 6px"),
("text-align", "left"),
]},
{"selector": "td", "props": [
("padding", "6px"),
]},
])
)
app = App(app_ui, server)The key here is passing the toolbar directly as the label. Include your label text as the first element, then use toolbar_spacer() to push the buttons to the right side. Toolbars automatically expand to full width when used as input labels, creating a compact control.
Complex Text Inputs with Toolbars#
Chatbots and AI applications have accelerated the need for more toolbars within text input areas to provide tools for attaching context or manipulating text.
Some newer Shiny components like input_submit_textarea() allow you to pass a toolbar directly into the input itself.
Here’s a message composer example that includes buttons for attaching files, selecting a priority, and clearing the message:
input_submit_textarea(
id = "message",
label = "Your message",
placeholder = "Type your message here...",
toolbar = toolbar(
align = "left",
toolbar_input_button(
id = "attach_file",
label = "Attach",
icon = icon("paperclip")
),
toolbar_input_select(
id = "priority",
label = "Priority",
choices = c("Low", "Medium", "High", "Urgent"),
icon = icon("flag")
),
toolbar_divider(),
toolbar_input_button(
id = "clear_message",
label = "Clear",
icon = icon("trash")
)
)
)Complete app code
app_6.R
library(shiny)
library(bslib)
ui <- page_fluid(
h2("Example App"),
layout_columns(
card(
card_header(
"Sales Data",
toolbar(
align = "right",
toolbar_input_select(
id = "data_filter",
label = "Region",
choices = c("All", "North", "South", "East", "West"),
icon = icon("filter"),
tooltip = "Region"
),
toolbar_input_button(
id = "toggle_filter",
label = "Switch to Product",
icon = icon("right-left"),
tooltip = "Switch to filtering by Product"
),
toolbar_divider(),
toolbar_input_button(
id = "save_btn",
label = "Save",
icon = icon("floppy-disk")
)
)
),
card_body(
tableOutput("sales_table")
)
),
card(
card_header("Toolbar in Input Label"),
card_body(
numericInput(
"quantity",
label = toolbar(
"Quantity:",
toolbar_spacer(),
toolbar_input_button(
id = "btn_preset_10",
label = "10",
show_label = TRUE,
tooltip = "Set to 10"
),
toolbar_input_button(
id = "btn_preset_50",
label = "50",
show_label = TRUE,
tooltip = "Set to 50"
),
toolbar_input_button(
id = "btn_preset_100",
label = "100",
show_label = TRUE,
tooltip = "Set to 100"
),
toolbar_divider(),
toolbar_input_button(
id = "btn_reset",
label = "Reset",
icon = icon("rotate-left"),
tooltip = "Reset to 1"
),
align = "right"
),
value = 1,
min = 1,
max = 1000
),
textOutput("quantity_output")
)
),
col_widths = c(6, 6)
),
card(
card_header("Toolbar in Text Input Submit Area: Message Composer"),
card_body(
layout_columns(
input_submit_textarea(
id = "message",
label = "Your message",
placeholder = "Type your message here...",
toolbar = toolbar(
align = "left",
toolbar_input_button(
id = "attach_file",
label = "Attach",
icon = icon("paperclip")
),
toolbar_input_select(
id = "priority",
label = "Priority",
choices = c("Low", "Medium", "High", "Urgent"),
icon = icon("flag")
),
toolbar_divider(),
toolbar_input_button(
id = "clear_message",
label = "Clear",
icon = icon("trash")
)
)
),
div(
h4("Message History"),
uiOutput("message_history"),
style = "max-height: 400px; overflow-y: auto;"
),
col_widths = c(6, 6)
)
)
)
)
server <- function(input, output, session) {
# Track current filter mode
filter_mode <- reactiveVal("Region")
# Handle save button click
observeEvent(input$save_btn, {
update_toolbar_input_button(
"save_btn",
icon = icon("check"),
label = "Saved"
)
showNotification("Saving", type = "message")
})
# Handle toggle filter button click
observeEvent(input$toggle_filter, {
if (filter_mode() == "Region") {
filter_mode("Product")
update_toolbar_input_select(
"data_filter",
label = "Product",
choices = c("All", "Widget A", "Widget B", "Widget C", "Widget D"),
selected = "All"
)
update_toolbar_input_button(
"toggle_filter",
label = "Switch to Region"
)
update_tooltip("toggle_filter_tooltip", "Switch to filtering by Region")
update_tooltip("data_filter_tooltip", "Product")
} else {
filter_mode("Region")
update_toolbar_input_select(
"data_filter",
label = "Region",
choices = c("All", "North", "South", "East", "West"),
selected = "All"
)
update_toolbar_input_button(
"toggle_filter",
label = "Switch to Product"
)
update_tooltip("toggle_filter_tooltip", "Switch to filtering by Product")
update_tooltip("data_filter_tooltip", "Region")
}
})
# Handle numeric input preset buttons
observeEvent(input$btn_preset_10, {
updateNumericInput(session, "quantity", value = 10)
})
observeEvent(input$btn_preset_50, {
updateNumericInput(session, "quantity", value = 50)
})
observeEvent(input$btn_preset_100, {
updateNumericInput(session, "quantity", value = 100)
})
observeEvent(input$btn_reset, {
updateNumericInput(session, "quantity", value = 1)
})
output$quantity_output <- renderText({
paste("Current quantity:", input$quantity)
})
# Sample sales data
sales_data <- reactive({
data.frame(
Product = c("Widget A", "Widget B", "Widget C", "Widget D"),
Region = c("North", "South", "East", "West"),
Sales = c(1200, 850, 1450, 920),
stringsAsFactors = FALSE
)
})
# Filtered sales data based on current filter
filtered_data <- reactive({
data <- sales_data()
if (input$data_filter != "All") {
if (filter_mode() == "Region") {
data <- data[data$Region == input$data_filter, ]
} else {
data <- data[data$Product == input$data_filter, ]
}
}
data
})
# Render the table
output$sales_table <- renderTable({
data <- filtered_data()
if (nrow(data) > 0) {
data$Sales <- paste0("$", format(data$Sales, big.mark = ",", trim = TRUE))
}
data
})
# Handle message input with toolbar
messages <- reactiveVal(character(0))
observeEvent(input$message, {
new_message <- paste0(
"[", input$priority, "] ",
input$message
)
messages(c(messages(), new_message))
})
observeEvent(input$attach_file, {
showNotification("File attachment feature clicked", type = "message")
})
observeEvent(input$clear_message, {
updateTextAreaInput(session, "message", value = "")
})
output$message_history <- renderUI({
if (length(messages()) == 0) {
p("No messages yet")
} else {
tagList(
lapply(messages(), function(msg) {
div(
msg,
class = "mb-2",
style = "background-color: #e9ecef; padding: 10px 15px; border-radius: 8px;"
)
})
)
}
})
}
shinyApp(ui, server)ui.input_submit_textarea(
id="message",
label="Your message",
placeholder="Type your message here...",
toolbar=ui.toolbar(
ui.toolbar_input_button(
id="attach_file",
label="Attach",
icon=icon_svg("paperclip"),
),
ui.toolbar_input_select(
id="priority",
label="Priority",
choices=["Low", "Medium", "High", "Urgent"],
icon=icon_svg("flag"),
),
ui.toolbar_divider(),
ui.toolbar_input_button(
id="clear_message",
label="Clear",
icon=icon_svg("trash"),
),
align="left",
),
)Complete app code
app_6.py
import pandas as pd
from faicons import icon_svg
from shiny import App, Inputs, Outputs, Session, reactive, render, ui
app_ui = ui.page_fluid(
ui.h2("Example App"),
ui.layout_columns(
ui.card(
ui.card_header(
"Sales Data",
ui.toolbar(
ui.toolbar_input_select(
id="data_filter",
label="Region",
choices=["All", "North", "South", "East", "West"],
icon=icon_svg("filter"),
tooltip="Region",
),
ui.toolbar_input_button(
id="toggle_filter",
label="Switch to Product",
icon=icon_svg("right-left"),
tooltip="Switch to filtering by Product",
),
ui.toolbar_divider(),
ui.toolbar_input_button(
id="save_btn",
label="Save",
icon=icon_svg("floppy-disk"),
),
align="right",
),
),
ui.card_body(ui.output_table("sales_table")),
),
ui.card(
ui.card_header("Toolbar in Input Label"),
ui.card_body(
ui.input_numeric(
"quantity",
label=ui.toolbar(
"Quantity:",
ui.toolbar_spacer(),
ui.toolbar_input_button(
"btn_preset_10",
label="10",
show_label=True,
tooltip="Set to 10",
),
ui.toolbar_input_button(
"btn_preset_50",
label="50",
show_label=True,
tooltip="Set to 50",
),
ui.toolbar_input_button(
"btn_preset_100",
label="100",
show_label=True,
tooltip="Set to 100",
),
ui.toolbar_divider(),
ui.toolbar_input_button(
"btn_reset",
label="Reset",
icon=icon_svg("rotate-left"),
tooltip="Reset to 1",
),
align="right",
),
value=1,
min=1,
max=1000,
),
ui.output_text("quantity_output"),
),
),
col_widths=[6, 6],
),
ui.card(
ui.card_header("Toolbar in Text Input Submit Area: Message Composer"),
ui.card_body(
ui.layout_columns(
ui.input_submit_textarea(
id="message",
label="Your message",
placeholder="Type your message here...",
toolbar=ui.toolbar(
ui.toolbar_input_button(
id="attach_file",
label="Attach",
icon=icon_svg("paperclip"),
),
ui.toolbar_input_select(
id="priority",
label="Priority",
choices=["Low", "Medium", "High", "Urgent"],
icon=icon_svg("flag"),
),
ui.toolbar_divider(),
ui.toolbar_input_button(
id="clear_message",
label="Clear",
icon=icon_svg("trash"),
),
align="left",
),
),
ui.div(
ui.h4("Message History"),
ui.output_ui("message_history"),
style="max-height: 400px; overflow-y: auto;",
),
col_widths=[6, 6],
),
),
),
)
def server(input: Inputs, output: Outputs, session: Session) -> None:
# Track current filter mode
filter_mode = reactive.value("Region")
@reactive.effect
@reactive.event(input.save_btn)
def _():
ui.update_toolbar_input_button(
"save_btn",
icon=icon_svg("check"),
label="Saved",
)
ui.notification_show("Saving", type="message")
# Handle toggle filter button click
@reactive.effect
@reactive.event(input.toggle_filter)
def _():
if filter_mode() == "Region":
filter_mode.set("Product")
ui.update_toolbar_input_select(
"data_filter",
label="Product",
choices=["All", "Widget A", "Widget B", "Widget C", "Widget D"],
selected="All"
)
ui.update_toolbar_input_button(
"toggle_filter",
label="Switch to Region",
)
ui.update_tooltip("toggle_filter_tooltip", "Switch to filtering by Region")
ui.update_tooltip("data_filter_tooltip", "Product")
else:
filter_mode.set("Region")
ui.update_toolbar_input_select(
"data_filter",
label="Region",
choices=["All", "North", "South", "East", "West"],
selected="All"
)
ui.update_toolbar_input_button(
"toggle_filter",
label="Switch to Product",
)
ui.update_tooltip("toggle_filter_tooltip", "Switch to filtering by Product")
ui.update_tooltip("data_filter_tooltip", "Region")
# Handle numeric input preset buttons
@reactive.effect
@reactive.event(input.btn_preset_10)
def _():
ui.update_numeric("quantity", value=10)
@reactive.effect
@reactive.event(input.btn_preset_50)
def _():
ui.update_numeric("quantity", value=50)
@reactive.effect
@reactive.event(input.btn_preset_100)
def _():
ui.update_numeric("quantity", value=100)
@reactive.effect
@reactive.event(input.btn_reset)
def _():
ui.update_numeric("quantity", value=1)
@render.text
def quantity_output():
return f"Current quantity: {input.quantity()}"
# Sample sales data
@reactive.calc
def sales_data():
return pd.DataFrame(
{
"Product": ["Widget A", "Widget B", "Widget C", "Widget D"],
"Region": ["North", "South", "East", "West"],
"Sales": [1200, 850, 1450, 920],
}
)
# Filtered sales data based on current filter
@reactive.calc
def filtered_data():
data = sales_data()
if input.data_filter() != "All":
if filter_mode() == "Region":
data = data[data["Region"] == input.data_filter()]
else:
data = data[data["Product"] == input.data_filter()]
return data
# Render the table
@render.table
def sales_table():
return (
filtered_data()
.style.hide(axis="index")
.format({"Sales": "${:,.0f}"})
.set_table_styles([
{"selector": "th", "props": [
("border-bottom", "1px solid black"),
("padding", "8px 6px"),
("text-align", "left"),
]},
{"selector": "td", "props": [
("padding", "6px"),
]},
])
)
# Handle message input with toolbar
messages = reactive.value([])
@reactive.effect
@reactive.event(input.message)
def _():
new_message = f"[{input.priority()}] {input.message()}"
messages.set(messages.get() + [new_message])
@reactive.effect
@reactive.event(input.attach_file)
def _():
ui.notification_show("File attachment feature clicked", type="message")
@reactive.effect
@reactive.event(input.clear_message)
def _():
ui.update_text_area("message", value="")
@render.ui
def message_history():
if len(messages.get()) == 0:
return ui.p("No messages yet")
else:
return ui.TagList([
ui.div(
msg,
class_="mb-2",
style="background-color: #e9ecef; padding: 10px 15px; border-radius: 8px;"
)
for msg in messages.get()
])
app = App(app_ui, server)The input_submit_textarea() component accepts a toolbar parameter directly, making it easy to add contextual controls right where users need them.
Toolbar Input Components#
Here’s a quick reference of the toolbar input components available in both bslib and py-shiny :
| R (bslib) | Python (py-shiny) | Description |
|---|---|---|
toolbar()
|
ui.toolbar()
|
The container for toolbar inputs |
toolbar_input_button()
|
ui.toolbar_input_button()
|
A small action button |
toolbar_input_select()
|
ui.toolbar_input_select()
|
A compact dropdown select |
toolbar_divider()
|
ui.toolbar_divider()
|
A visual separator between groups of controls |
toolbar_spacer()
|
ui.toolbar_spacer()
|
A flexible spacer that pushes subsequent items to the opposite end of the toolbar |
Each toolbar input also has a corresponding update_* function (R) / update_* method on ui (Python) for modifying it dynamically.
Summary#
Toolbars provide a flexible way to add compact controls to your Shiny apps:
- Card headers and footers - Associate controls directly with card content
- Input labels - Add quick actions like reset or format buttons
- Text area inputs - Build rich message composers with attachment and formatting tools
Their small footprint makes them perfect for dashboards and modern app interfaces where screen real estate is at a premium. Give them a try in your next Shiny app!
What else is new?
See what else is new in the bslib changelog (R) and the py-shiny changelog (Python).
